Invitrogen

Ankyrin G Monoclonal Antibody (2A8)

查看其他9个Ankyrin G抗体

抗体检测数据 (3)

Ankyrin G Antibody in Immunocytochemistry (ICC/IF)

Ankyrin G Antibody in Immunocytochemistry (ICC/IF)

图: 1 / 3

Ankyrin G Antibody (MA5-47397) in ICC/IF

Immunofluorescent analysis of Ankyrin G in HEK293 cell culture. Samples were stained with Ankyrin G monoclonal antibody (Product # MA5-47397) using a dilution of 1:2,000 (green). The blue is Hoechst staining of nuclear DNA. The ankyrin G antibody produces specific staining associated with the plasma membrane.

Ankyrin G Antibody in Immunocytochemistry (ICC/IF)

Ankyrin G Antibody in Immunohistochemistry (PFA fixed) (IHC (PFA))

Ankyrin G Antibody in Western Blot (WB)

Product Image Gallery

Ankyrin G Antibody in Immunocytochemistry (ICC/IF) — Immunofluorescent analysis of Ankyrin G in HEK293 cell culture. Samples were stained with Ankyrin G monoclonal antibody (Product # MA5-47397) using a dilution of 1:2,000 (green). The blue is Hoechst staining of nuclear DNA. The ankyrin G antibody produces specific staining associated with the plasma membrane.

Ankyrin G Antibody in Immunohistochemistry (PFA fixed) (IHC (PFA)) — Immunohistochemistry analysis of Ankyrin G in cortex section of rat brain. Samples were stained with Ankyrin G monoclonal antibody (Product # MA5-47397) using a dilution of 1:2,000 (green). Costained with rabbit pAb to NF-L dilution 1:5,000 in red. The blue is Hoechst staining of nuclear DNA. Following transcardial perfusion of rat with 4% paraformaldehyde, brain was post fixed for 24 hours, cut to 45 μM, and free-floating sections. The ankyrin G antibody stains the axonal initial segments, while the RPCA-NF-L antibody labels dendrites and axons of neuronal cells.

Ankyrin G Antibody in Western Blot (WB) — Western blot analysis of Ankyrin G in different tissue and cell lysates. Samples were incubated in Ankyrin G monoclonal antibody (Product # MA5-47397) using a dilution of 1:2,000 (green). [1] protein standard (red), [2] NIH-3T3, [3] C6, [4] HEK293, [5] HeLa, [6] SH-SY5Y cells, [7] rat brain, and [8] mouse brain lysates. Bands at ~190 kDa represent ankyrin3 splice variants, higher molecular weight bands at 270 kDa and 480 kDa can be seen on longer exposure. Lower molecular weight bands are likely proteolytic fragments.

产品信息

MA5-47397

应用

建议稀释比

已发表文章

免疫印迹 (WB)

1:1,000-1:2,000

-

免疫组织化学（多聚甲醛固定） (IHC (PFA))

1:1,000

-

免疫细胞化学 (ICC/IF)

1:1,000

-

产品规格

种属反应

Human, Rat

宿主/亚型

Mouse / IgG1

分类

Monoclonal

类型

Antibody

克隆号

2A8

抗原

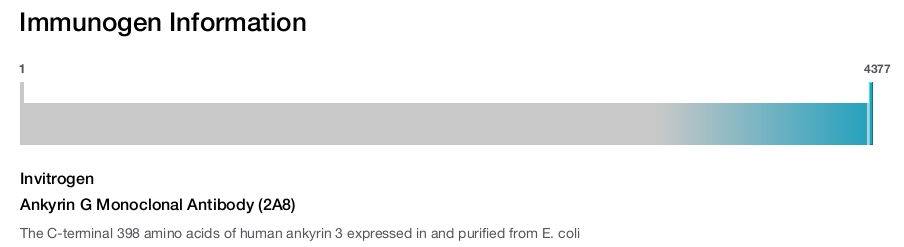

The C-terminal 398 amino acids of human ankyrin 3 expressed in and purified from E. coli

查看免疫原

偶联物

Unconjugated Unconjugated Unconjugated

形式

Liquid

浓度

1 mg/mL

纯化类型

Protein A/G

保存液

PBS with 50% glycerol

内含物

5mM sodium azide

保存条件

Store at 4°C short term. For long term storage, store at -20°C, avoiding freeze/thaw cycles.

运输条件

Wet ice

RRID

AB_2942379

靶标信息

Ankyrin-G is found in several tissues including brain where, due to tissue-specific RNA processing, it is expressed as two different isoforms, localized to axon initial segments and nodes of Ranvier. Ankyrin-G is also found at sites of epithelial cell-cell contact and in the intracellular membranes of some cells. Ankyrin-G isoforms contain a unique stretch of sequence highly enriched in serine and threonine residues immediately following a globular head domain. Ankyrin-G is thought to participate in the maintenance and targeting of ion channels and cell adhesion molecules to the nodes of Ranvier and to axon initial segments.

仅用于科研。不用于诊断过程。未经明确授权不得转售。

篇参考文献 (0)

您是否在文献中引用过该产品？请点击下方按钮邮件告知我们。

引用该产品

生物信息学

蛋白别名: ANK-3; ankyrin 3 (G); ankyrin 3, epithelial; Ankyrin-3; Ankyrin-G

查看更多收起

基因别名: ANK-3; ANK3; ANKYRIN-G; MRT37

查看更多收起

UniProt ID: (Human) Q12955, (Rat) O70511

查看更多收起

Entrez Gene ID: (Human) 288, (Rat) 361833

查看更多收起

structural constituent of cytoskeleton protein binding cytoskeletal protein binding cytoskeletal adaptor activity spectrin binding protein binding, bridging ion channel binding cadherin binding scaffold/adaptor protein

参与通路

mitotic cytokinesis ER to Golgi vesicle-mediated transport plasma membrane organization cytoskeletal anchoring at plasma membrane signal transduction axonogenesis axon guidance neuromuscular junction development positive regulation of gene expression positive regulation of cell communication by electrical coupling positive regulation of sodium ion transport magnesium ion homeostasis neuronal action potential positive regulation of homotypic cell-cell adhesion Golgi to plasma membrane protein transport regulation of potassium ion transport establishment of protein localization positive regulation of membrane potential cellular response to magnesium ion membrane assembly protein localization to plasma membrane maintenance of protein location in plasma membrane protein targeting to plasma membrane positive regulation of protein targeting to membrane positive regulation of membrane depolarization during cardiac muscle cell action potential negative regulation of delayed rectifier potassium channel activity positive regulation of sodium ion transmembrane transporter activity positive regulation of cation channel activity synapse organization
