Orion™ Pro Star PH211 pH/ORP Bench Meter with Stand
Orion™ Pro Star PH211 pH/ORP Bench Meter with Stand
Thermo Scientific™

Orion™ Pro Star PH211 pH/ORP Bench Meter with Stand

Designed to provide accurate and reliable pH, ORP and temperature analysis, the Thermo Scientific™ Orion™ Pro Star PH211 bench meter is well suited for laboratories that desire a modern meter with advance performance.
Have Questions?
更改视图buttonViewtableView
货号类型适用于(应用)
PSTAR2115pH/ORP Bench Meter Standard KitMost common pH samples as well as pH samples containing tris buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included pH electrode has glass body for chemical resistance in a variety of samples
PSTAR2110pH/ORP Bench Meter with StandMeter with stand, purchase electrode for applications separately
PSTAR2114pH/ORP Bench Meter Difficult Sample KitpH samples that are thick, viscous or semi-solid including foods, beverages, wastewaters, emulsions, soils, slurries, suspended solids or sludges
PSTAR2116pH/ORP Bench Meter Durable KitMost common pH samples as well as pH samples containing tris buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included pH electrode has epoxy body for durable, break resistant performance
PSTAR2117pH/ORP Bench Meter Low Maintenance KitMost common pH samples as well as pH samples containing tris buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included pH electrode is gel-filled for low-maintenance performance
PSTAR2118pH/ORP Bench Meter Micro KitLow volume or micro samples (down to 15μL in 384 well plates) as well as pH samples containing tris buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride
PSTAR2119pH/ORP Bench Meter ORP KitMost common ORP samples
货号 PSTAR2115
价格(CNY)/ Each
-
类型:
pH/ORP Bench Meter Standard Kit
适用于(应用):
Most common pH samples as well as pH samples containing tris buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included pH electrode has glass body for chemical resistance in a variety of samples
Designed to provide accurate and reliable pH, ORP and temperature analysis, the Orion Pro Star PH211 bench meter is well suited for laboratories that desire a modern meter with advance performance. Featuring a 7-inch, high-resolution color display with responsive capacitive touchscreen, the Orion Pro Star meter focuses on ensuring a streamlined, easy to use, innovative meter for your testing needs. The Orion Pro Star meter offers onscreen guidance with step-by-step instructions and supports GLP compliance with date and time stamped calibration logs and data logs.

Orion Pro Star PH211 pH/ORP bench meters are designed to provide accurate and reliable testing in laboratories that need a modern, easy-to-operate meter with advanced performance and reliable data reporting. Orion Pro Star bench meter benefits include:

  • Large 7-in., high-resolution color display
  • Responsive touchscreen operable with gloves
  • Angled display to help ensure ergonomic viewing
  • Streamlined, easy to operate user interface
  • Vertical meter orientation helps optimize bench space
  • Supports GLP compliance
  • Stores 20 calibration logs per parameter with date and time
  • Stores 10,000 data log sets with date and time
  • Outputs to a printer, computer, or USB flash drive for long-term data retention
  • Inputs sample ID with optional USB barcode scanner, USB keyboard or USB mouse
  • Stirs samples with meter-controlled and meter-powered stirrer probe

Orion Pro Star PH211 pH/ORP bench meters offer the following measurements:

  • pH, mV or ORP with temperature

First time meter startup is made easy with the meter setup wizard, which guides the user through important meter and measurement settings. Utilize onscreen meter tours and guides for calibration, measurements, meter connections, electrode stand assembly and pH electrode usage to better understand meter operation, warnings and required maintenance. Use guided calibrations with step-by-step instructions to perform calibrations correctly and ensure accurate, reliable and reportable measurements.

Easily view measurements on the large 7-in. color graphic touchscreen display. Select the basic, advanced or custom measure display format to view only the information you prefer in the measure mode. Select the graph view to display measurements in a graph with temperature for measurement versus time studies.

While taking measurements, easily enter sample identification information into the meter using an optional meter accessory including USB barcode scanner, USB keyboard or USB mouse. Easily and uniformly stir samples using an optional meter-controlled and meter-powered stirrer probe, which eliminates the need for a magnetic stir plate and bars.

Save, display and export up to 20 calibrations per parameter with date and time stamp. Filter calibration logs by user and export calibration logs by date range or all at once.

Easily save measurements to the data log for long-term data retention. Save, display and export up to 10,000 data log sets with date and time stamp. View individual data log sets with extensive measurement information organized into an easy-to-read onscreen list format. Filter data logs by user, date and time or log number and export data logs by date and time range, log number range or all at once.

Output meter data logs, calibration logs and methods to a printer, computer or USB flash drive. Save data to a computer or USB drive as comma separated value (CSV) files for import into programs like Microsoft Excel or save data to a USB drive as report files for printable records. Customize exported files to include all data, advanced, intermediate or basic data only to obtain only the information needed for your record keeping. Utilize bidirectional communication with remote commands to interface the meter with computer programs including LIMS, HyperTerminal, PuTTY and additional data collection software.

Save measurement settings to standardize your analysis and SOPs using meter methods. Save up to 10 methods per parameter. Import methods to and export methods from other Orion Pro Star series meters to standardize your testing across multiple meters.

Activate the secure mode and assign up to 3 administrators and up to 30 users with individual account logins and password protection. Administrators can select from pre-defined user access levels to meter functions. Control access to date and time settings, instrument settings, data logs, and calibration logs, or customize each user's access level from full access to basic data collection only. Administrators can also export the user list and audit trail to help ensure digital data integrity.

Operate the included electrode stand to facilitate secure, smooth movement of electrodes into and out of solutions. The electrode stand's weighted base provides flexible placement of the stand around the meter. Secure a wide range of electrodes using the various electrode holder options. Neatly organize electrode cables in the built-in side channels of the stand.

规格
准确度(温度)±0.3°C, ±0.5°F
准确度 (mV)±0.2 mV or ±0.05% of the reading, whichever is greater
准确度 (pH)±0.002 pH
输出USB flash drive, computer or printer (STARA-106)

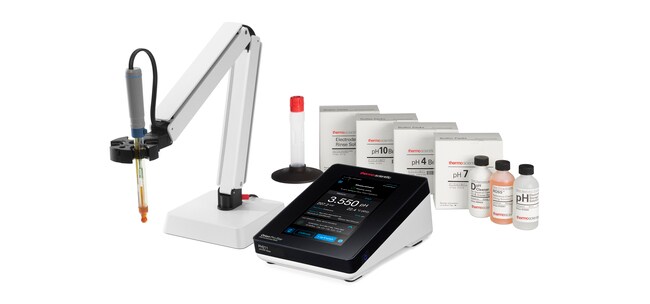

包括Meter with stand (PSTAR2110); ROSS Ultra Triode refillable glass-body pH/ATC electrode (8302BNUMD); pH 4, 7, 10 buffers and rinse solution pouches; pH electrode storage solution and cleaning solution; pH electrode storage sleeve and base
适用于(应用)Most common pH samples as well as pH samples containing tris buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included pH electrode has glass body for chemical resistance in a variety of samples
测量模式pH with mV and Temperature, ORP with mV and Temperature
校准pH, ORP, Temperature
范围 (pH)-2 - 20
分辨率 (pH)0.1, 0.01 or 0.001 pH
校准点 (pH)1至5点校正
范围 (mV)-2000 to 2000 mV
范围 (ORP)-2000 to 2000 mV
分辨率 (mV)0.1 mV
校准点1 to 5 (pH), 1 (ORP), 1 to 2 (Temperature)
温度范围(公制)-30°C to +130°C
温度范围(英制)-22°F to +266°F
分辨率(温度)0.1°C、0.1°F
温度选择Automatic with ATC temperature sensor, ambient or manual
温度电极校准1 or 2 point temperature offset calibration
显示类型7-in. High-resolution Color Graphic LCD
背光选项
存储非易失性
数据点10,000 with Date and Time Stamp
日志功能类型自动(使用自动读数和定时读数模式),手动(使用连续读数模式)
报警输出Calibration reminder alarm, high and low limit alarm per parameter
输入BNC for pH or ORP, 8-pin MiniDIN for ATC, pin-tip for reference
认证/合规CE、TUV 3-1、FCC A 级
IP 防护等级IP54
交流电源适配器Universal 100-240 V 50/60 Hz power supply with wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets
尺寸(长 x 宽 x 高)218.9 x 153.2 x 91.33 mm; 8.62 x 6.03 x 3.60 in.
重量(公制)1.00 kg
重量(英制)2.20 lbs.
质保期2 year meter warranty
键盘Capacitive touchscreen user interface
方法10
型号PH211
语言Chinese, English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
范围(相对 mV)-2000 to 2000 mV
等电位点7.000 pH
通道1
类型pH/ORP Bench Meter Standard Kit
Unit SizeEach
